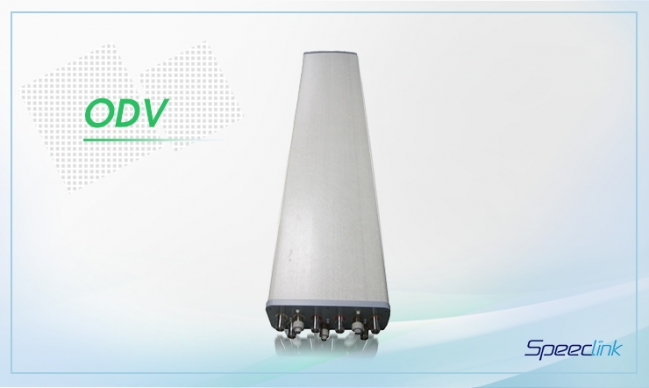

Outdoor Directional Tri-band Antenna
XXX Pol, 65°
15.4/17.4/17.4dBi, E-Tilt: 0-10/0-10/0-10
698-960/1710-2690/1710-2690MHz
Mechanical Specifications
| Parameters |
Specifications |
| Dimensions, HxWxD (mm) / (in) |
2000x380x138 / 78.7x15.0x5.4 |
| Weight, w/o Mounting Kit (kg) / (lb) |
26.0 / 57.3 |
| Weight, with Mounting Kit (kg) / (Ib) |
31.5 / 69.5 |
| Connector Type and Location |
6 x 7/16 DIN-Female, Bottom |
| Operational Temperature (°C) |
-50 to +70 |
| Operational Humidity (%) |
≤95 |
| Operational/Max Wind Speed (km/h) |
150 / 200 |

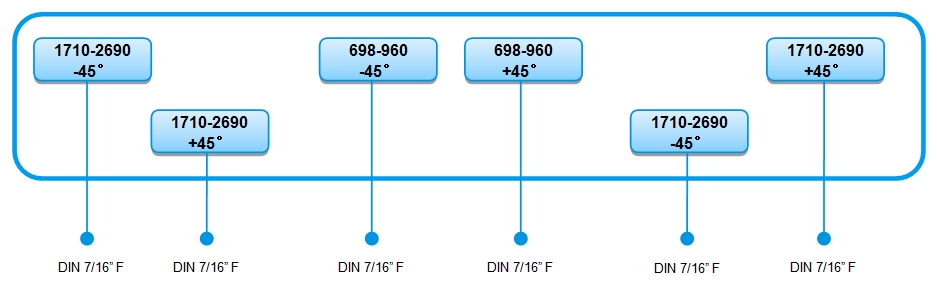

Connector Position
