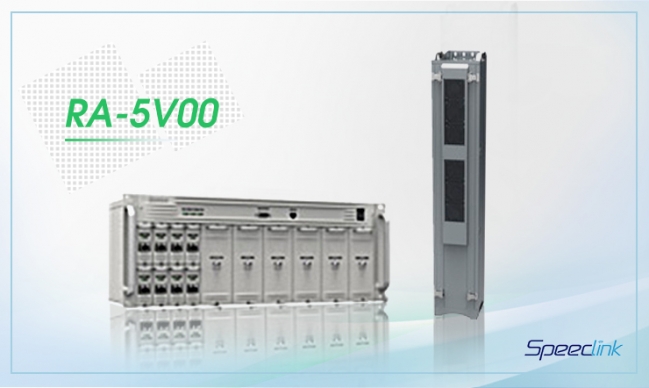

RA-5V00

Tri-band Distributed Antenna System
RA-5V00


 Features


	Tri-band configuration supports a single system of up to three frequency bands, e.g., 700MHz+ 900MHz+1800MHz.
	Full operating bandwidth system supports multi-operator or multi-network application.
	Single optical fiber between Master Unit (MU) and Remote Unit (RU) with built-in WDM.
	Optional uplink diversity.
	One MU supports up to eight RUs.
	Automatic optical AGC.
	Operation & Maintenance communication over optical fiber.
	IP65 weatherproof RU with built-in surge protector.

 Product Description


The RA-5V00 Tri-band Distributed Antenna System provides flexible and scalable solution of multi-band, multi- operator coverage extension applications, such as citywide enhancement, highway, canyons, campus, underground tunnels, airports, convention centers, etc.

This system consists of Master Unit (MU) and Remote Unit (RU). The RU is an integrated RF unit that can support a single system of up to three frequency bands (700MHz, 900MHz and 1800MHz). In addition, the modular designed system can be easily configured for optical fiber distributed application by adding MU and RU. The MU can support up to eight RUs by adding additional optical module.

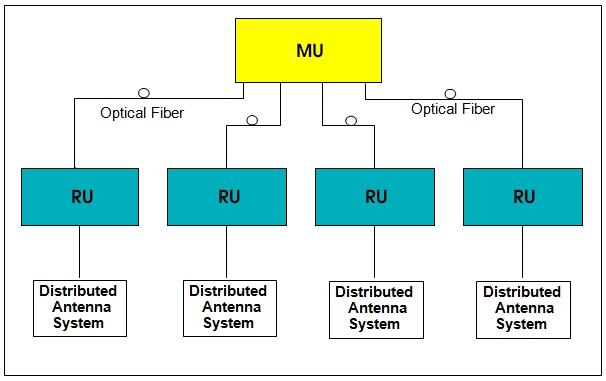

 Functional Block Diagram
