ComFlex Series Distributed Antenna System

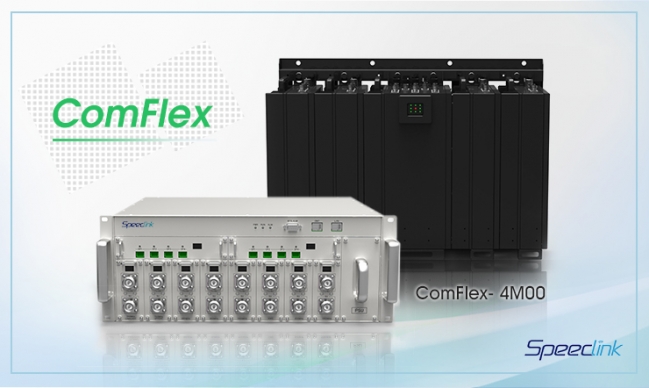

ComFlex- 4M00
Features
 |
Modularized Master Unit and Remote Unit support field upgrade and independent gain control. |
|
RF module supports both simplex and duplex in MU. |
|
Full operation bandwidth system supports multi-operator application. |
|
Supports all major technologies GSM, CDMA, WCDMA and LTE. |
|
Optical link auto gain control. |
|
Web based GUI for intelligent commissioning and configuration. |
|
Supports FOU expansion in Master Unit. |
Product Description
The ComFlex series Distributed Antenna System is an RF over fiber solution that enhances a wireless network’s coverage by extending cellular services from existing cell sites to an indoor environment. The system consists of the Master Unit (MU) and medium power Remote Unit (RU). The MU includes the Chassis, Power Supply Unit (PSU), Fibre Optical Unit (FOU) and RF Unit (RFU). With a modular design, it can support up to 8 independent RF inputs and 8 Remote Units. The Remote Unit is designed with a compact form factor for easy installation, and it’s modular design is easy for upgrading and maintenance which supports 5 independent bands, 700MHz, 700MIMO, 900MHz and 900MIMO,1800MHz and 1800MIMO,2100MHz and 2100MIMO,2600MHz and 2600MIMO.
This solution is an effective point-to-multipoint distributed antenna system that provides effective coverage enhancement. The Comba DAS offers service providers an optimal solution for multiple applications from a single building to a campus, mega mall, or sports arena and beyond.
Functional Block Diagram
